64pcs 3030LEDs Multiple Angles Available 236×70MM Size Glare Reduction PC Material IP65 Grade Uniform Ilumination Street and Area Lighting Lens

64pcs 3030LEDs Multiple Angles Available 236×70MM Size Glare Reduction PC Material IP65 Grade Uniform Ilumination Street and Area Lighting Lens

Products - High Power LED Lens
  • Highlight

    Multiple Angles Street Lighting Lens

    ,

    IP65 Grade Street Lighting Lens

    ,

    Uniform Ilumination Street Lighting Lens

  • Model No
    HH-242-64×1-xx-3030
  • Material
    Optical Grade PC
  • Transmittance
    92%
  • Size(mm)
    236×70
  • Waterproof
    Yes/Gasket
  • The Number Of Light Source
    64
  • Angle
    30°/60°/90°/90120/T3M
  • Light Source
    3030
  • Application
    Street Light & Flood Light
  • Place of Origin
    Shenzhen,China
  • Brand Name
    hanhui
  • Certification
    CE,RoHs
  • Model Number
    HH-242-64×1-xx-3030
  • Minimum Order Quantity
    1pc
  • Packaging Details
    carton
  • Delivery Time
    2-12 working days
  • Payment Terms
    T/T,Western Union,MoneyGram
  • Supply Ability
    15000pcs/week

64pcs 3030LEDs Multiple Angles Available 236×70MM Size Glare Reduction PC Material IP65 Grade Uniform Ilumination Street and Area Lighting Lens

  • 64pcs 3030LEDs Multiple Angles Available 236×70MM Size Glare Reduction PC Material IP65 Grade Uniform Ilumination Street and Area Lighting Lens
Get Price Contact Now

64pcs 3030LEDs Multiple Angles Available 236×70MM Size Glare Reduction PC Material IP65 Grade Uniform Ilumination Street and Area Lighting Lens


1. Advantage

(1) High transmittance

The light transmittance of our lens is 92%.

(2) High-quality PC material

We use high-quality PC materials(Teijin PC), and we can also specify the materials.

(3)Convenient installation

Screw installation is convenient and fast.

(4)Waterproof

Fitted with a silicone gasket, it is effectively waterproof.

(5)Multiple light distribution

Multiple light distributions to meet your light distribution needs.

(6)Multiple dimensions

A variety of sizes to meet your different size needs. (If you have special requirements, we can also make a special mold.)

(7)Uniform facula

The LED light color is better with a lens, even in a centralized spot.


2. Specification

Mold No. HH-242-64×1-xx-3030
Material PC
Transmittance 92%
Size(mm) 236×70
Angle 30°/60°/90°/90120/T3M
LEDs 3030
LEDs number 64

3. Application

Can be used in street lighting and flood lighting.

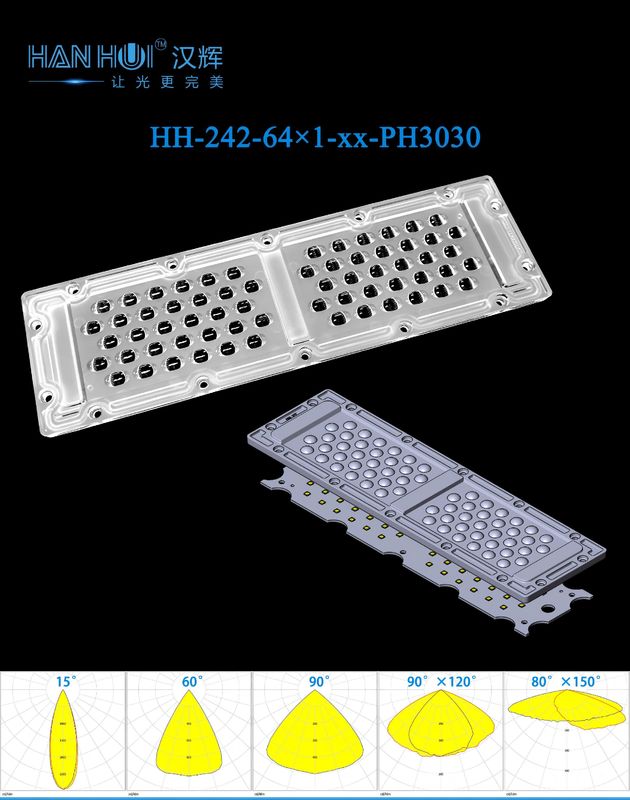

4. Light distribution

64pcs 3030LEDs Multiple Angles Available 236×70MM Size Glare Reduction PC Material IP65 Grade Uniform Ilumination Street and Area Lighting Lens 0

64pcs 3030LEDs Multiple Angles Available 236×70MM Size Glare Reduction PC Material IP65 Grade Uniform Ilumination Street and Area Lighting Lens 1

64pcs 3030LEDs Multiple Angles Available 236×70MM Size Glare Reduction PC Material IP65 Grade Uniform Ilumination Street and Area Lighting Lens 2

64pcs 3030LEDs Multiple Angles Available 236×70MM Size Glare Reduction PC Material IP65 Grade Uniform Ilumination Street and Area Lighting Lens 3

64pcs 3030LEDs Multiple Angles Available 236×70MM Size Glare Reduction PC Material IP65 Grade Uniform Ilumination Street and Area Lighting Lens 4


5. Our services

(1) Good quality control
(2) Highly competitive prices
(3) Latest product
(4) Best professional team
(5) Smooth communication
(6) Effective OEM & ODM service


6. FAQ


Q1. What’s your MOQ? Can I order a small order QTY for the first time?

A: For new customers, a small order QTY is accepted for the first time. The bigger the quantity you place, the better the price we can offer.

Q2. What about the lead time?
A: It depends on the quantity. Generally, it takes us 2-12 days after payment to finish the order. (Except customized products)

Q3. Which payment term?
A: Usually, we prefer T/T, PayPal, Western Union, and MoneyGram.

Q4. Can you do ODM and OEM products?
A: Yes, ODM, OEM order is accepted.

Q5. How to process mold product orders?
A: Firstly, let us know your requirements or application.
Secondly, our designers will come up with designs.
Thirdly, the Customer confirms the design and pays the deposit.
Fourthly, after the mold is completed, the customer confirms the sample and pays the balancer.

Q6. How to guarantee the quality of your products?
A: All our products are 100% QC passed marked before delivery, and if there is any problem during the period, we will help to deal with it.

Q7. Reliable After-sales Service:
A: Customers could be guided by us to shoot any troubles; We will supply enough spare parts for each project.
A 24-hour time solution of calling or emailing is always available.

Q8. How could I get a sample?
A: We need to charge shipping fees, and we can provide free samples for small quantities.
